KREON LAZER TAKİP SİSTEMİ OPTİK CMM
 |

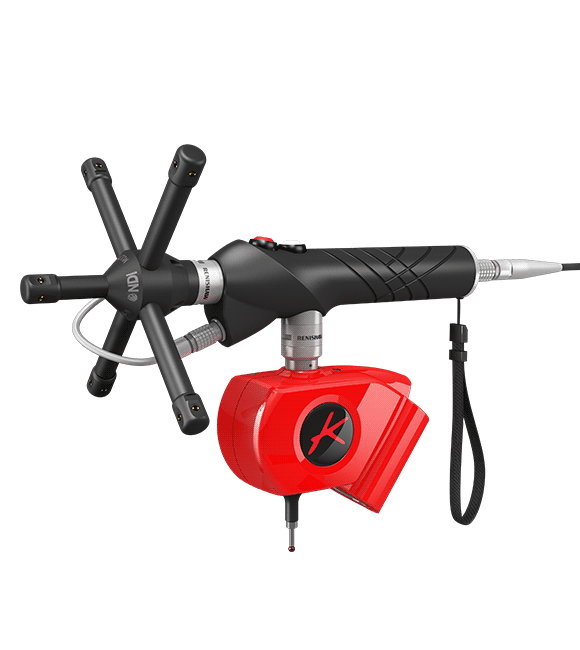

Lazer Takip Sistemi-AirTrack Handheld:Optik CMMİlk dokunarak ve dokunmadan ölçüm yapabilen lazer takip sistemi
 AirTrack handheld lazer takip sistemi Solano ve Zephyr II lazer tarayıcılarla uygundur. Manuel ölçüm deneyimleri için Renishaw (TP 2/20/200) tetiklemeli probe larıyla kombinasyon halinde geometrik ve freeform yüzey uygulamalarında benzersiz bir çözüm olur. |
|---|

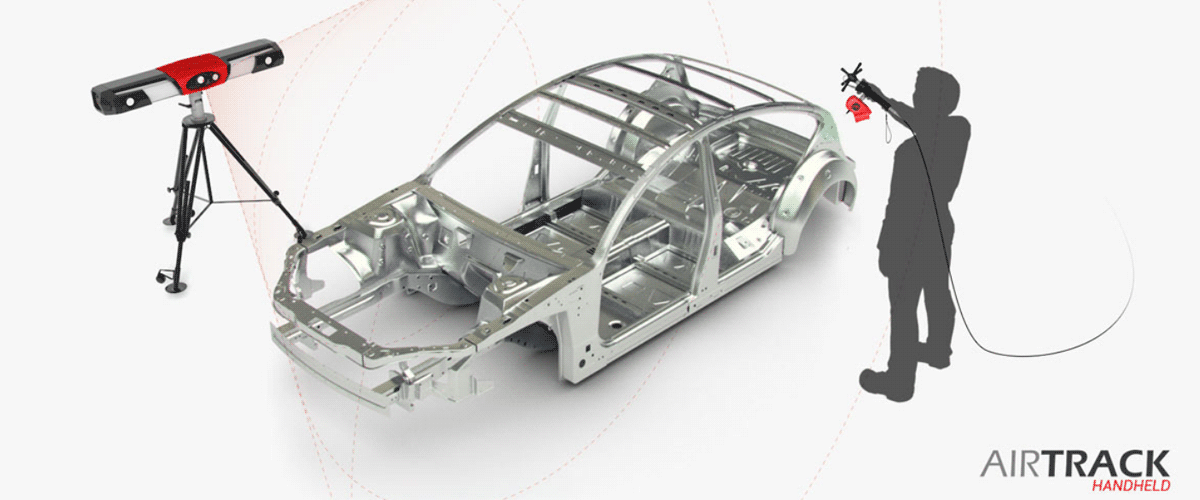

| AirTrack Handheld Optik CMM geniş ölçüm hacmine sahiptir |
|---|
 |
|---|

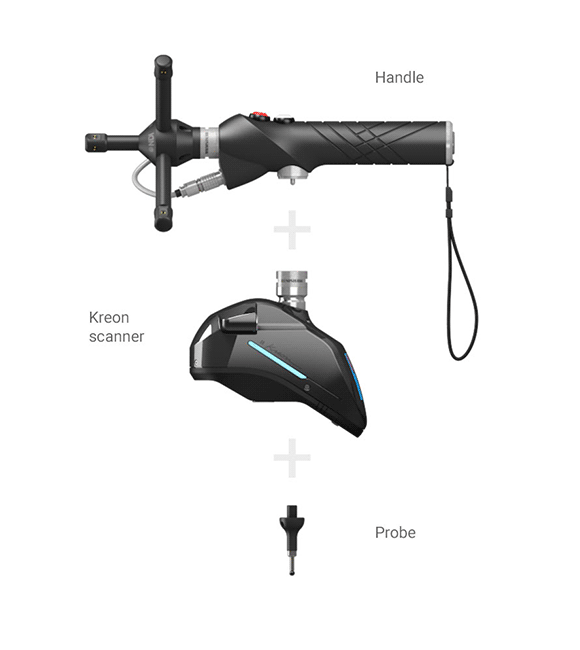

Kreon scanners’ accuracy and speed All Kreon scanners can be mounted on the handle, so they can give all their power to the AirTrack Handheld solution. Blue laser, speed (up to 250.000 pts/sec) and accuracy (up to 10 µm) help you to deal with the most complex surfaces including the shiny and multimaterial parts. Lightweight and ergonomic handle AirTrack Handheld is a very lightweight portable CMM: 1000g with Zephyr II Blue and 900g with Solano Blue. Its handle is ergonomic and the scanning has never been so effortless. The handle is just connected by a cable offering important freedom of mouvement. The system is also equipped with a wrist strap for more security and to preserve the scanner from accident. Probing and scanning in the same software program By default, all Kreon scanner can be connected with a probe under them. Then scanning and probing can be executed at the same time in the same software. For example, the scanning of one part during the identical measurement process, can be used for free form shape control and probing of geometrical entities inspection. |
 |
|---|

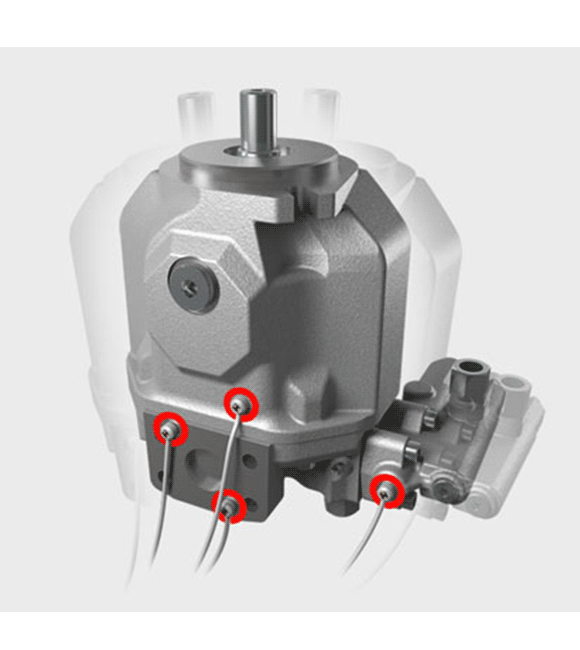

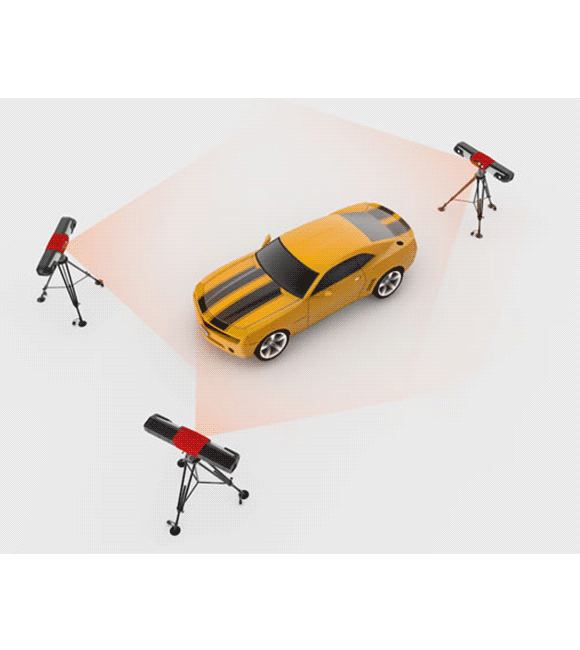

| Dinamik Parça Referanslama(DPR) | Multitrack |
|---|
 |
 |
|---|
| With DPR, an operator can simultaneously move the part, fixture or scanner, even the Optical Tracker itself, and the system will maintain an accurate alignment. Unwanted motion and vibrations are continuously measured and subtracted, without operator intervention. | With DPR, an operator can simultaneously move the part, fixture or scanner, even the Optical Tracker itself, and the system will maintain an accurate alignment. Unwanted motion and vibrations are continuously measured and subtracted, without operator intervention. |
|---|
| Teknik Özellikler |
|---|
|
|
AirTrack 1000 | AirTrack 2000 | AirTrack 3500 |
| Measurement Volume | 1.5m to 4.5m (10m³) | 1.5m to 6m (20m³) | 1.5m to 7.5m (35m³) |
| Single Point Accuracy | Up to 20 µm | Up to 20 µm | Up to 20 µm |
| Volumetric Accuracy | 80 µm + 2.5L/100 | 95 µm + 2.5L/100 | 110 µm + 2.5L/100 |
